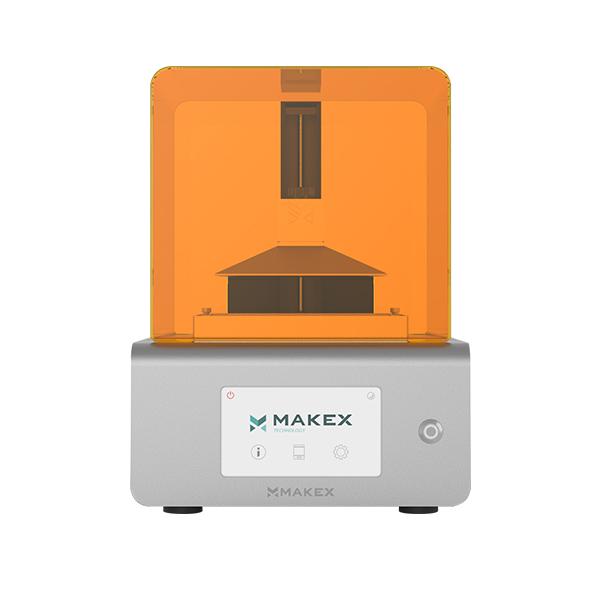

M-One Dental 50F - Professional 3D Printer for Dental

$7,599.00

MakeX Technology

M-One Dental 50F - Professional 3D Printer for Dental

$7,599.00

Specifications:

  • Footprint: 310*310*450/490 mm
  • Build Volume: 96*54*115/165 mm
  • XY Resolution: 50 µm
  • Z Resolution: 5 µm
  • Ultraviolet Band: 385 nm
  • Technology: DLP
  • Light Source: Industrial HD UV-LED Light Engine
  • Lifespan: 50000 hours
  • Connectivity: Wi-Fi, Internet & USB Drive
  • Touch Screen: 7"
  • Supported OS: Windows, Mac, Linux
  • Software: XMaker

Advantages:

  1. Highest precision. Meet with the demanding accuracy requirements for all dental applications.5 microns highest in Z-axis.
  2. Multi-layer printing function supported. 24 hours of uninterrupted production is achievable.
  3. Equipped with fast printing tech., high efficiency.
  4. Fool-style operation.
  5. No special maintenance required and cost saving.
  6. Open material system.
  7. Free but powerful editing and slicing software.

Warranty: 1 Year

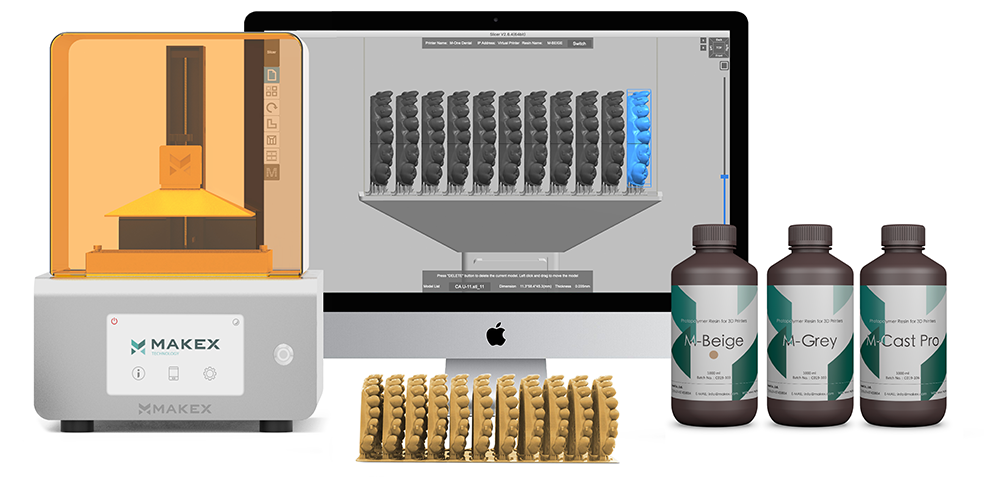

M-One Dental 50F 385uv, professional 3D printer for dentistry.

Dental 3D printing as a new technology has the ability to reduce costs,
increase treatment flexibility, and expand the range of patient care.

M-One Dental 50F

Larger Build Area

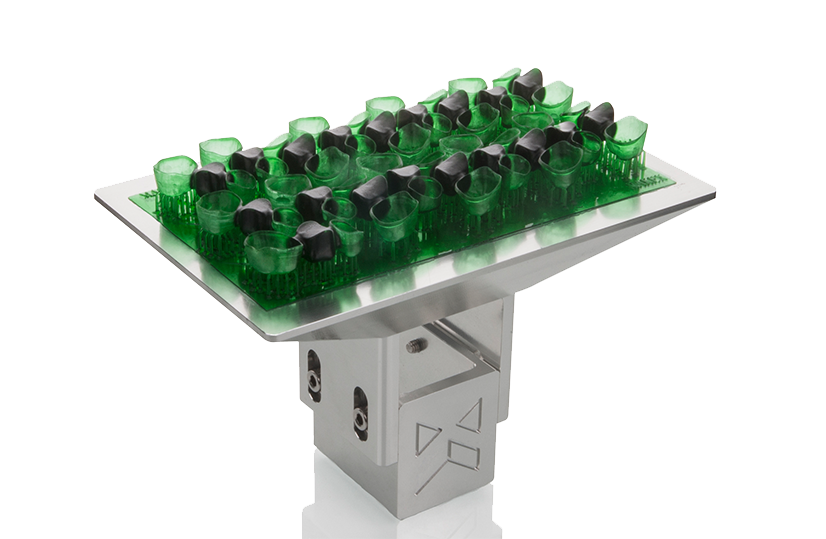

It provides a larger build area under a compact desktop. Print plenty of dental arches at one time.

Faster Printing

Equipped with quick-printing resin tank. The printing speed is 6x faster.

On-board Assistant

The built-in 6-core computer helps you manage jobs and ensure successful printing.

Future Proof

Receive wireless updates to let you know the latest features. Wirelessly send and monitor print jobs.

New Industry Standards

M-One Dental allows you to make aligners, surgical guides, digital denture, occlusal guard, etc.
M-One Dental is compatible with resins from third parties, which gives you flexibility.

Orthodontic Appliance Thumb

Orthodontic Appliance

Denture Base Thumb

Denture Base

Partial Denture Thumb

Partial Denture

Temporary Teeth Thumb

Temporary Teeth

Splints Thumb

Splints

Crown and Bridge Thumb

Crown and Bridge

Indirect Bonding Tray Thumb

Indirect Bonding Tray

Surgical Guides Thumb

Surgical Guides


Details of Dental Models

Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb
Dental Model Thumb


Increase the speed by 6x.

M-One Dental 50F 385UV - print at 2 inches per hour.

M-Dental - print at 1 inch per hour.

Ordinary DLP printer (baseline).

print head

Larger build area, faster print speed.

The M-One Dental 50F 385UV has a larger printing platform, which allows it to print more models at one time,
and improve productivity greatly.

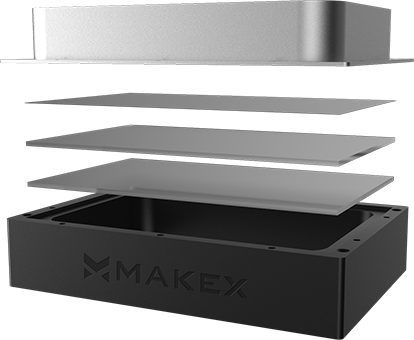

Tank 2.0, faster and better.

The proprietary tank 2.0 technology introduces another important innovation. Air is introduced between the resin and the bottom of the tank to minimize adhesion, and then elastic displacement is used to separate the prints from the bottom of the tank. As a result, the printing speed is increased significantly and the risk of printing failure is reduced.

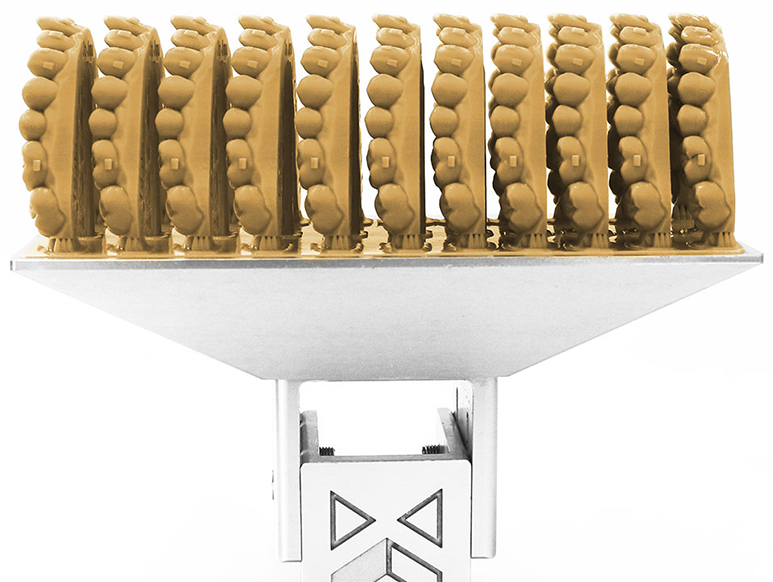

About 20 minutes, print a full plate of the dental arches.

M-One Dental 50F 385UV uses its special proprietary technology.

The capacity is increased by 60%.

An increase of 60% of tank capacity and volume helps ensure you never run out of the resin.

new tank

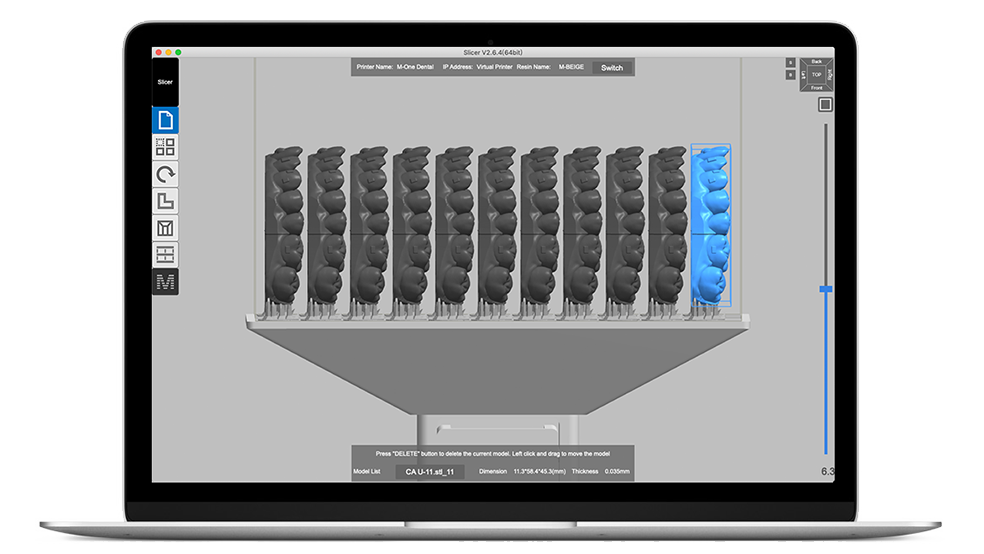

XMaker, a powerful but easy-to-use software

XMaker is a software developed for the MakeX 3D print users especially, with simple operation and powerful functions.
Our software also includes many advanced settings, making your printing process as simple and easy as you want.

Bulk copy icon

Bulk copy

Rotation icon

Rotation

Adjust wall thickness icon

Adjust wall thickness

Multi-layer printing icon

Multi-layer printingy

Priority Support icon

Priority Support

XMaker Program

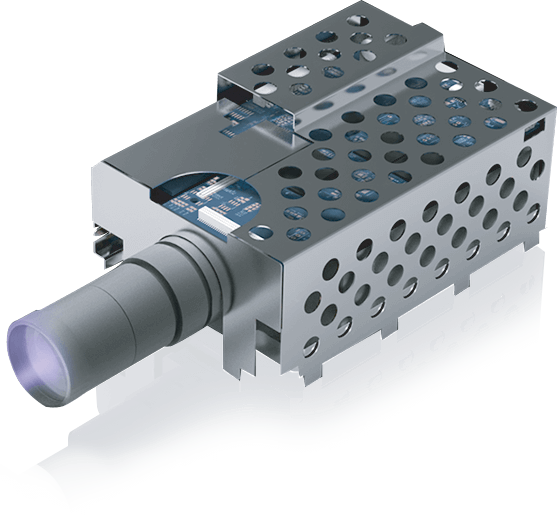

Customized Light Engine

The customized light engine used in the M-One Dental 50F 385UV provides the uniformity of light across the construction surface. The output of each light engine has been checked at the key points of the construction surface to ensure that every printing is perfect and accurate.

The accuracy of X Y axis

Up to 50 μm

helps you to print fine details easily.


Custom made

385 nm

ultraviolet light engine


DLP by Texas Instruments Logo
light engine

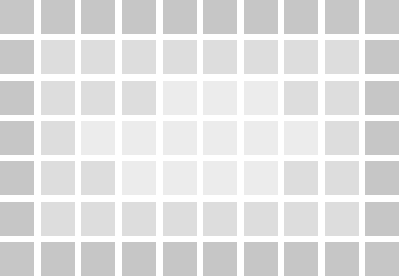

The light energy distribution of the M-One Dental 50F 385UV.

M-One Dental Light Distribution

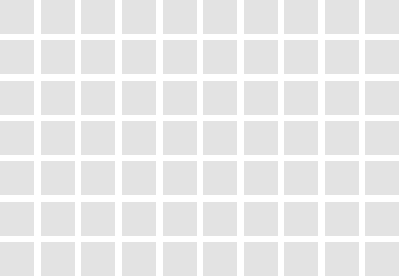

The light energy distribution of other DLP.

Other Light Distribution


M-One Dental icon

By using the imported 0.65dmd chip ensures a larger size and better imaging. The stable and uniform distribution of light source greatly improves the light utilization ratio and makes it have a longer service life and brighter brightness.

Extra long service life.

50000 hours

Greatly reduces the maintenance cost of light engine.
